S115M S115M S115M
TS115M TS115M TS115M



Data Sheet
(0 Reviews)  Review this item


  • Precision Devices 3-inch (75mm) voice coil composite metal diaphragm ferrite tweeter.
  • Precision Devices High-efficiency and high-rigidity paper cone 15-inch woofer.
  • 90°(H)×60°(V) coverage angle realises uniform on-axis and off-axis response.
  • 18mm multi-layer Birch plywood, surface is treated with polyurea wear-resistant paint.
  • Rotatable Logo.
  • Party-style KTV, KTV sound reinforcement.
  • Bars, Live House, Nightclubs.

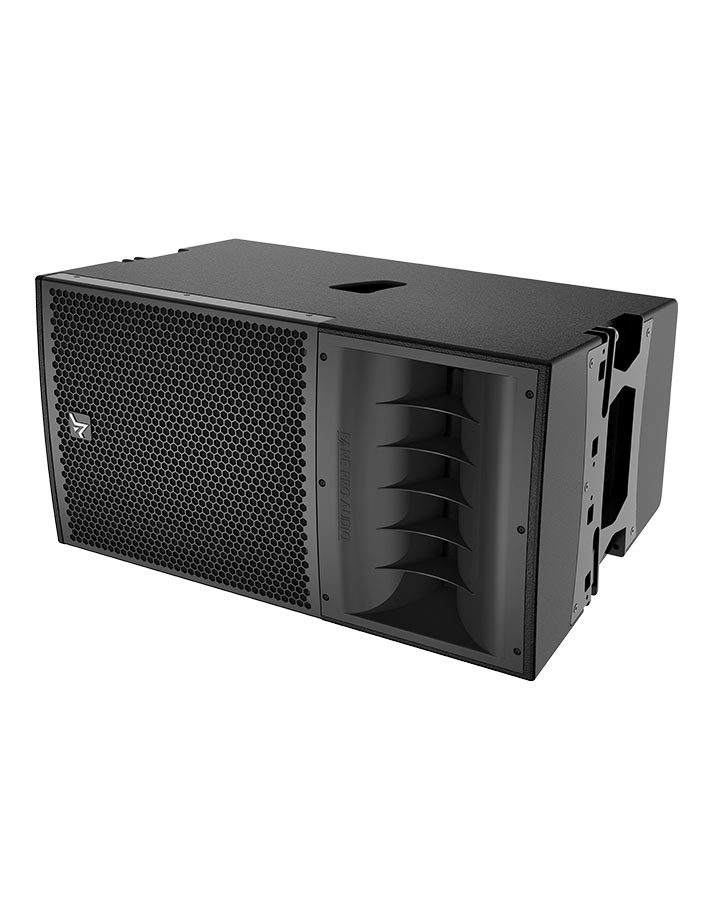

The S115M is a high-performance, compact, front ported speaker, designed for deployment in small to medium-scale venues, that embraces the strengths of both line array and matrix technologies. With its exceptional user-friendliness, expandability, and versatility, it’s specifically engineered to be used in arrays of up to six speakers, perfect for flying with its custom-built rigging. S115M is equally adept as a standalone point source loudspeaker with a 90°(H) ×60°(V) coverage.

Specifically designed for use in high impact party-style KTV amplification, bars, nightclubs. Boasting an impressively smooth frequency response, spanning from 50Hz to 20kHz (-10dB) with a well-balanced phase curve. The S115M features a trapezoidal enclosure design, offering flexibility for a range of functions. At its heart is  a Precision Devices 15-inch low-frequency driver with a 76.2mm voice coil and a 3-inch ferrite high-frequency driver. The high-frequency section is equipped with a 90° (H) × 60° (V) constant directivity horn, ensuring precise and coherent sound projection.

The S115M achieves a sensitivity of 100dB and exhibits an AES power rating of 600W. Its compact enclosure employs a newly adopted port design, ingeniously combining exceptional acoustic performance with accurate coverage, making it an adaptable choice for all applications.

The enclosure is constructed with 18mm birch plywood and finished in a durable black polyurethane paint. The rear panel houses two NL-4 sockets, offering versatile connectivity options: (1+1- for input, 2+2- for through connections). The adjustable logo adds to its versatility, ensuring a seamless fit in any setup. Additionally, a black perforated iron grille lined with acoustic transparent fabric effectively safeguards the speaker unit against moisture and dust

General Specifications
Power Handling 600 W (AES)
Program Power Handling 1200 W
Peak Power Handling 2400 W
Nominal Impedance 8 Ω
Average Sensitivity 100 dB @ 1W/1m
Calculated Max SPL / 1m 128 dB (continuous)
Max SPL (Program) 131 dB (program)
Max SPL (Peak) 134 dB (peak)
Manufacturing Consistency 200 Hz to 10 kHz (±3 dB)
Nominal Directivity (-6dB) 90° (H) x 60° (V)
Recommended Amplifier ≥ 1000 W @ 8Ω (no clip) in specified frequency response
Recommended Low Cut (Full Range) 55 Hz,18 dB/ oct Butterworth
Recommended Low Cut (with sub) 60 to 140 Hz, 24 dB/ oct Linkwitz-Riley
Crossover N/a
Low Frequency Driver Precision Devices transducer, 8Ω impedance, 15” (381 mm) diameter, 3” high temperature voice coil on glass fibre former
High Frequency Driver Precision Devices 3” (75 mm) voice coil, 1.4” Exit, 8Ω impedance compression driver
Recommended Crossover N/a
Nominal Size 15-inch
Type Two-way Passive
Frequency Response (±3dB) 55 Hz - 19 kHz (±3 dB)
Frequency Response (-10dB) 50 Hz - 20 kHz (-10 dB)
Construction and Shipping Information
Pole Mount 35 mm
Flying Hardware Two-point Flying System
Connectors 2 Neutrik Speakon NL4
Cabinet CNC made with tongue and groove assembly, 18 mm void-free, exterior grade, birch plywood
Finish Black Polyurea Coating
Cabinet Size (HxWxD) 765 x 411 x 500 mm
Shipping Carton Size (HxWxD) 865 x 505 x 595 mm
Net Weight 48 kg net
Gross Weight 50 kg gross
