ST-218XS

DUAL 18-INCH, HIGH EXCURSION, NEODYMIUM, PASSIVE TOURING SUBWOOFER SYSTEM

Data Sheet
(0 Reviews)  Review this item
£POA
RRP Inc. VAT
AVAILABILITY : IN STOCK



FEATURES
  • 2400 W AES power handling.
  • 135 dB continuous SPL output.
  • Equipped with the latest Fane neodymium drivers.
  • 30 - 1200 Hz usable frequency range.
  • Void-free birch plywood enclosure construction.
  • Proprietary HardTex paint finish with matt black topcoat.
  • Twin Neutrik Speakon NL4 connectors.
  • 35 mm pole mount adapter with M20 screw fitting.
  • Quick release rear castor plate adapters.
APPLICATIONS
  • Fixed supplementary bass reinforcement for clubs, bars, live music venues and theatres.
  • Portable supplementary bass reinforcement for medium sized clubs, bars, live music venues and theatres.
  • High performance monitoring.

The ST-218XS is the ultimate performer for bass reinforcement in large venues, tour sound and outdoor events. The XS model has been enhanced with the latest in Fane transducer technology. Dual lightweight, extremely low-distortion, high-excursion 18” (5” voice coil) neodymium LF drive units that ensure continuous SPL output levels of 135 dB with low frequency extension down to 25 Hz. The ST-218XS integrates seamlessly with ST series full range loudspeakers for stunning performance that will truly amaze audiences.

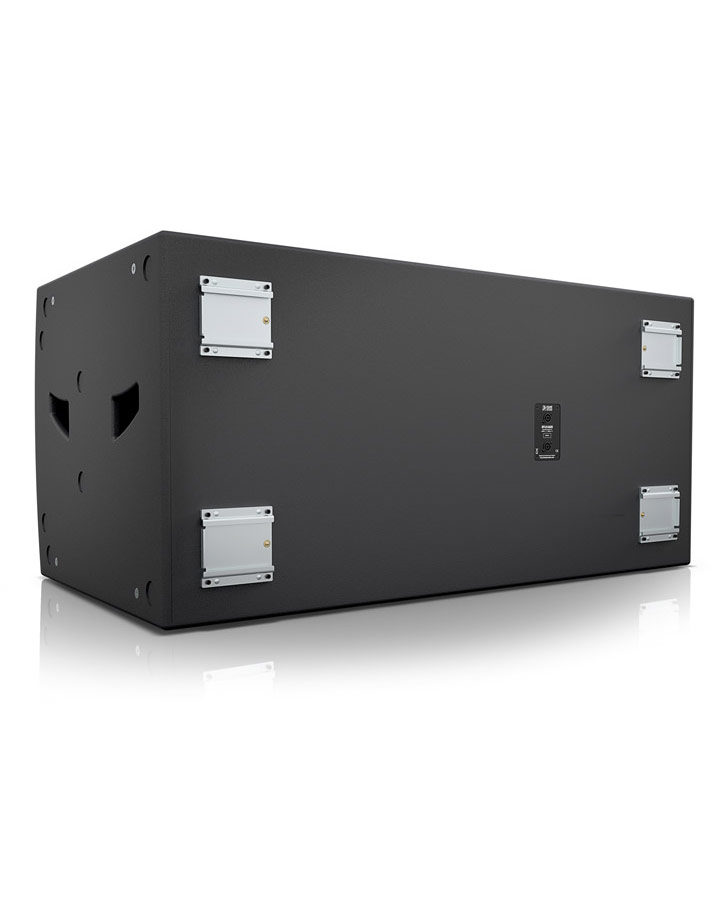

The enclosure is constructed from 18 mm and 24 mm exterior grade, void-free birch plywood and finished in touring grade, black HardTex paint. A strong black powder-coated steel grille with hexagon pattern and acoustic mesh backing protects the front of the cabinet. The cabinet also features a 35 mm pole mount adapter with M20 screw fitting, shaped recesses for safe stacking with other ST series models and four flush side handles along with four quick release castor plates on the rear of the cabinet for ease of handling (fits widely available castors, not supplied).

General Specifications
Power Handling 2400 W (AES)
Program Power Handling 4800 W
Peak Power Handling 9600 W
Nominal Impedance 4 Ω
Average Sensitivity 102 dB @ 1W/1m
Calculated Max SPL / 1m 135 dB continuous
Max SPL (Program) 138 dB
Max SPL (Peak) 141 dB
Frequency Response (-6dB) 30 - 1200 Hz
Manufacturing Consistency ± 3 dB from 30 to 300 Hz
Nominal Directivity (-6dB) Omnidirectional
Recommended Amplifier ≤ 3000 W @ 4Ω
Recommended Low Cut (Full Range) N/a
Recommended Low Cut (with sub) N/a
Crossover No, active usage only with external electronic crossover, Fane recommended DSP
Low Frequency Driver Fane transducer, 8Ω impedance with 60mm peak-peak excursion, neodymium motor structure, 18” (460 mm) diameter, 5” high temperature voice coil on glass fibre former
High Frequency Driver N/a
Recommended Crossover LPF 70 - 125 Hz, 24 dB/ Oct Butterworth/ Linkwitz-Riley
Nominal Size 18 Inch
Type Dual Subwoofer
Construction and Shipping Information
Pole Mount 35 mm Aluminium pot with M20 screw fitting
Flying Hardware 8x M8 points with internal metal brackets
Connectors 2 Neutrik Speakon NL4
Cabinet CNC made with tongue and groove assembly, 18 mm and 24 mm, exterior grade, void-free, birch plywood
Finish Proprietary HardTex, sand based paint with matt black topcoat finish
Cabinet Size (HxWxD) 1236 x 590 x 689 mm
Shipping Carton Size (HxWxD) 1286 x 640 x 739 mm
Net Weight 91 kg net
Gross Weight 101 kg gross
Optional Accessories 4x Quick release castor plates
