SV-6

6-INCH, TWO-WAY, PASSIVE LOUDSPEAKER SYSTEM

Data Sheet
(0 Reviews)  Review this item
£POA
RRP Inc. VAT
AVAILABILITY : IN STOCK



FEATURES
  • Ultra-compact, ultra-versatile, passive 2-way system.
  • 150 W AES power handling.
  • 91 dB continuous SPL output.
  • 80° x 60° low resonance horn.
  • Equipped with premium Fane neodymium driver.
  • Void-free birch plywood enclosure construction.
  • Proprietary RockTex paint finish with matt black topcoat.

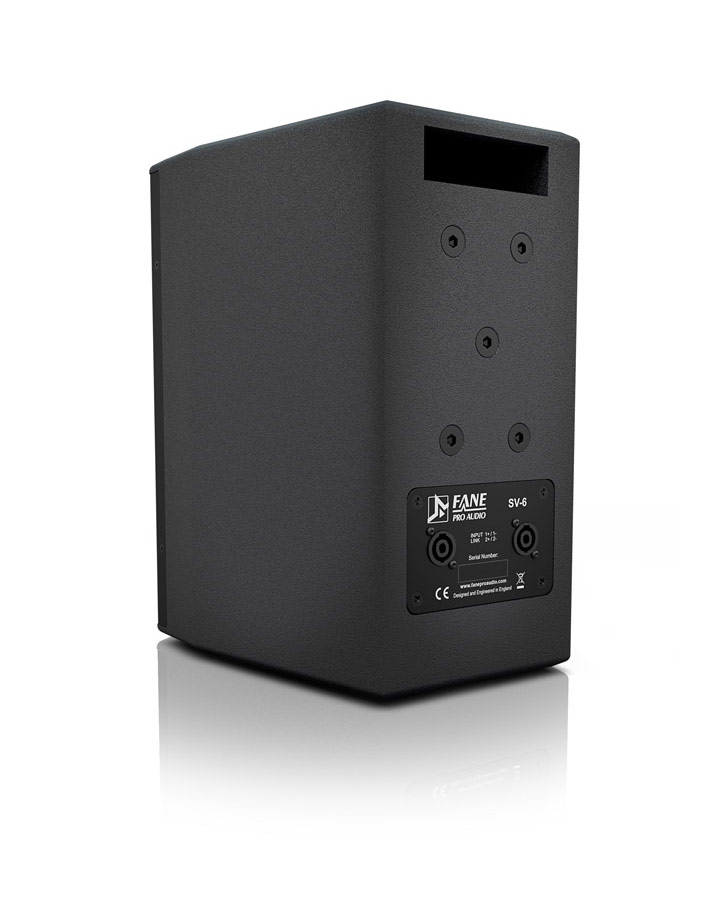

  • Twin Neutrik Speakon NL4 connectors.
  • 4x M8 mounting points with internal metal brackets.
APPLICATIONS
  • Install sound reinforcement.
  • Side fill / delay fill / diffusion.
  • Bars, restaurants and theatres.
  • Houses of worship.
  • Leisure and retail outlets.
  • Auditoriums, offices and conferences.

Don’t be fooled by the small size of the SV-6. When it comes to high-output and flawless performance this discreet and ultra-compact neodymium speaker packs a massive punch while retaining the smooth and balanced tonal characteristics of Fane Pro Audio systems. When you are working with limited space or require seamless audio coverage transitioning into larger spaces, the SV-6 is ideal for smaller bar/restaurants, meeting spaces or schools.

Fitted with a powder coated protective steel grille fitted with an acoustic mesh backing, the SV-6 is constructed from tongue-and-groove assembly, void-free birch plywood and finished in a matt black, sand-based paint.

General Specifications
Power Handling 150 W (AES)
Program Power Handling 300 W
Peak Power Handling 600 W
Nominal Impedance 8 Ω
Average Sensitivity 91 dB @ 1W/1m
Calculated Max SPL / 1m 113 dB continuous
Max SPL (Program) 116 dB
Max SPL (Peak) 119 dB
Frequency Response (-6dB) 70 - 19,000 Hz
Manufacturing Consistency ± 3 dB from 180 to 10,000 Hz
Nominal Directivity (-6dB) 80° x 60°
Recommended Amplifier ≤ 500 W @ 8Ω
Recommended Low Cut (Full Range) 60 Hz 18 dB/ oct Butterworth
Recommended Low Cut (with sub) 80 to 120 Hz, 24 dB/ oct Linkwitz-Riley
Crossover Passive
Low Frequency Driver Fane long throw neodymium transducer, 8Ω impedance, 6.5” (165 mm) diameter, 1.75” high temperature voice coil on glass fibre former
High Frequency Driver Fane compression driver 8Ω impedance, 1” (25 mm) exit, 1.75” (44 mm) voice coil, titanium diaphragm
Recommended Crossover N/a
Nominal Size 6 Inch
Type Two-Way, Passive
Construction and Shipping Information
Pole Mount 35 mm Metal
Flying Hardware 4x M8 points compatible with Powerdrive Type 75 mounting accessories or equivalent omni-mount system
Connectors 2 Neutrik Speakon NL4
Cabinet CNC made with tongue and groove assembly, 15 mm void-free, exterior grade, birch plywood
Finish Matt black, sand-based paint
Cabinet Size (HxWxD) 320 x 210 x 230 mm
Shipping Carton Size (HxWxD) 370 x 260 x 280 mm
Net Weight 7.1 kg net
Gross Weight 8.4 kg gross
Optional Accessories N/a
DescriptionSizeFormatGet File
SV-6 Datasheet0.49Mb.pdfDOWNLOAD
