ST-118S

18-INCH, PASSIVE TOURING SUBWOOFER SYSTEM

Data Sheet
(0 Reviews)  Review this item
£POA
RRP Inc. VAT
AVAILABILITY : IN STOCK



FEATURES
  • 800 W RMS power handling.
  • 1200 W RMS power handling.
  • 128 dB continuous SPL output.
  • Equipped with premium Fane driver.
  • 34 - 1200 Hz usable frequency range.
  • Void-free birch plywood enclosure construction.
  • Proprietary HardTex paint finish with matt black topcoat.
  • Twin Neutrik Speakon NL4 connectors.
  • 35 mm pole mount adapter with M20 screw fitting.
  • Quick release rear castor plate adapters.
APPLICATIONS
  • Fixed supplementary bass reinforcement for clubs, bars, live music venues and theatres.
  • Portable supplementary bass reinforcement for medium sized clubs, bars, live music venues and theatres.
  • High performance monitoring.

Exceptional sound quality and rock-solid engineering makes the ST-118S subwoofer suitable for bass reinforcement in main PA systems, touring or permanent installs in medium sized applications. The perfect solution for complementing the ST series full range loudspeakers, the enclosure is loaded with an optimised, high-excursion, Fane 18” (4” voice coil) cast frame driver featuring an advanced motor system design that minimises power compression. This, in combination with noise reducing optimised bass-reflex ports and internal bracing, ensures that the ST-118S is capable of delivering efficient dynamic and high-output bass response down to 28 Hz.

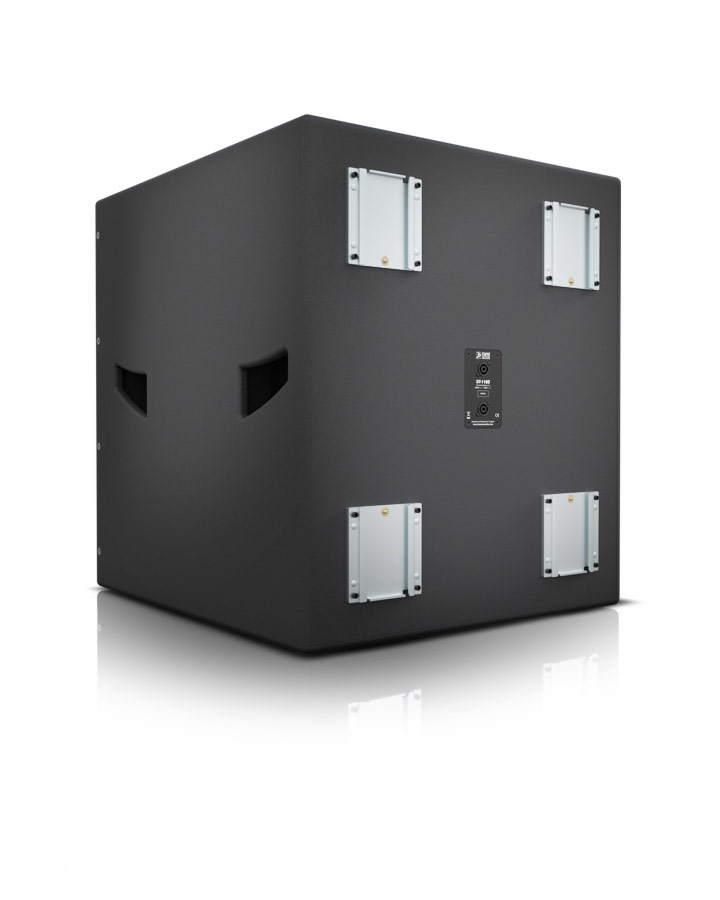

The enclosure is constructed from 18 mm and 24 mm exterior grade, void-free birch plywood and finished in touring grade, black HardTex paint. A strong black powder-coated steel grille with hexagon pattern and acoustic mesh backing protects the front of the cabinet. The cabinet also features a 35 mm pole mount adapter with M20 screw fitting, shaped recesses for safe stacking with other ST series models and four flush side handles along with four quick release castor plates on the rear of the cabinet for ease of handling (fits widely available castors, not supplied).

General Specifications
Power Handling 1200 W RMS (AES)
Program Power Handling 2400 W
Peak Power Handling 4800 W
Nominal Impedance 8 Ω
Average Sensitivity 98 dB @ 1W/1m
Calculated Max SPL / 1m 128 dB continuous
Max SPL (Program) 131 dB
Max SPL (Peak) 134 dB
Frequency Response (-6dB) 34 - 1200 Hz
Manufacturing Consistency ± 3 dB from 30 to 300 Hz
Nominal Directivity (-6dB) Omnidirectional
Recommended Amplifier ≤ 1600 W @ 8Ω
Recommended Low Cut (Full Range) N/a
Recommended Low Cut (with sub) N/a
Crossover No, active usage only with external electronic crossover, Fane recommended DSP
Low Frequency Driver Fane transducer, 8Ω impedance with 60 mm peak-peak excursion, 18” (460 mm) diameter, 4” high temperature voice coil on glass fibre former
High Frequency Driver N/a
Recommended Crossover LPF 70 - 125 Hz, 24 dB/ Oct Butterworth/ Linkwitz-Riley
Nominal Size 18 Inch
Type Subwoofer
Construction and Shipping Information
Pole Mount 35 mm Aluminium pot with M20 screw fitting
Flying Hardware 8x M8 points with internal metal brackets
Connectors 2 Neutrik Speakon NL4
Cabinet CNC made with tongue and groove assembly, 18 mm and 24 mm, exterior grade, void-free, birch plywood
Finish Proprietary HardTex, sand based paint with matt black topcoat finish
Cabinet Size (HxWxD) 665 x 590 x 689 mm
Shipping Carton Size (HxWxD) 715 x 640 x 739 mm
Net Weight 60 kg net
Gross Weight 65 kg gross
Optional Accessories 4x Quick release castor plates
DescriptionSizeFormatGet File
ST-118S Datasheet0.80Mb.pdfDOWNLOAD
